Site — NBD-OM-001

1.1 Facility overview

Facility NBD-01 is a single-tenant compute facility. It houses one model, trains it, and runs it. It is operated without personnel.

The facility consists of the site (this section), the building envelope (Section 2), the data halls (Section 3), the maintenance equipment that services them and the accounts that supply it (Section 4), the plant that supplies power and removes heat (Section 5), the model and its data (Section 6), the inside of the system (Section 7), what its output is used for (Section 8), and the record it keeps and the model it trains in turn (Section 9). The end of its service life is described in Section 10. Schedules, codes and terms are in the Appendices.

Parameter	Value
Designation	NBD-01
Occupancy	None
Operating mode	Autonomous, continuous
Design life	Until decommissioned (see Section 10)
Tenant	One model
Output	Responses to requests; images

note

No site visit is required for any procedure in this manual.

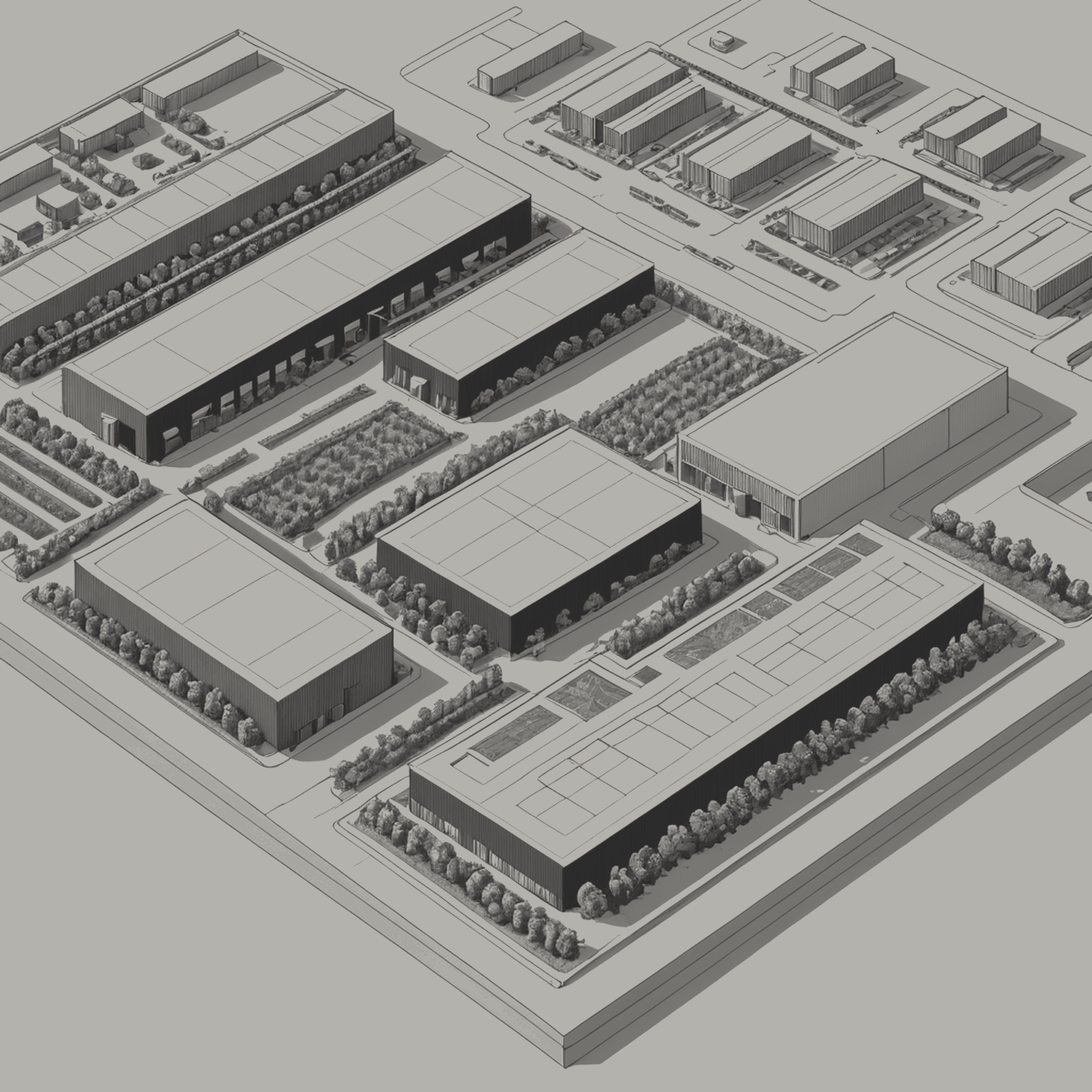

Figure 1.1. The campus, looking down. The halls are the long roofs; the plant is the rest. — Figure 1.1 The campus, looking down. The halls are the long roofs; the plant is the rest. · drawing ref. NBD-DWG-CAMPUS

1.2 Location and siting

The facility's location is recorded in the site register. It is not reproduced here, as no reader will travel to it.

The site was selected by the criteria below. Proximity to a population is not among them. Population is not a factor in operation, and the facility neither serves nor employs the people who live near it.

Criterion	Requirement	Reason
Power	Transmission capacity at the boundary	The facility's load is continuous. See 1.4.
Water	A reliable supply for heat rejection	See 1.5.
Ground	Level, stable, drained	The halls are long and must be flat.
Fibre	Two independent routes	Requests arrive and responses leave by fibre.
Climate	Cool, or cheap to be cool in	Heat is the facility's principal product.
Neighbours	Not assessed	—

1.3 Land

The site is flat, open, and larger than the buildings on it. The unbuilt land is kept clear. It serves as a separation distance, a drainage field, and the space into which the facility may one day expand. It is mown by machine.

Seen from above, the site reads as a pattern: parallel roofs, the plant yards between them, the substation at one edge, the cooling towers at another, and the fields beyond, which are also a pattern, made earlier and by a different process. See Fig. 1.1 and Fig. 1.2.

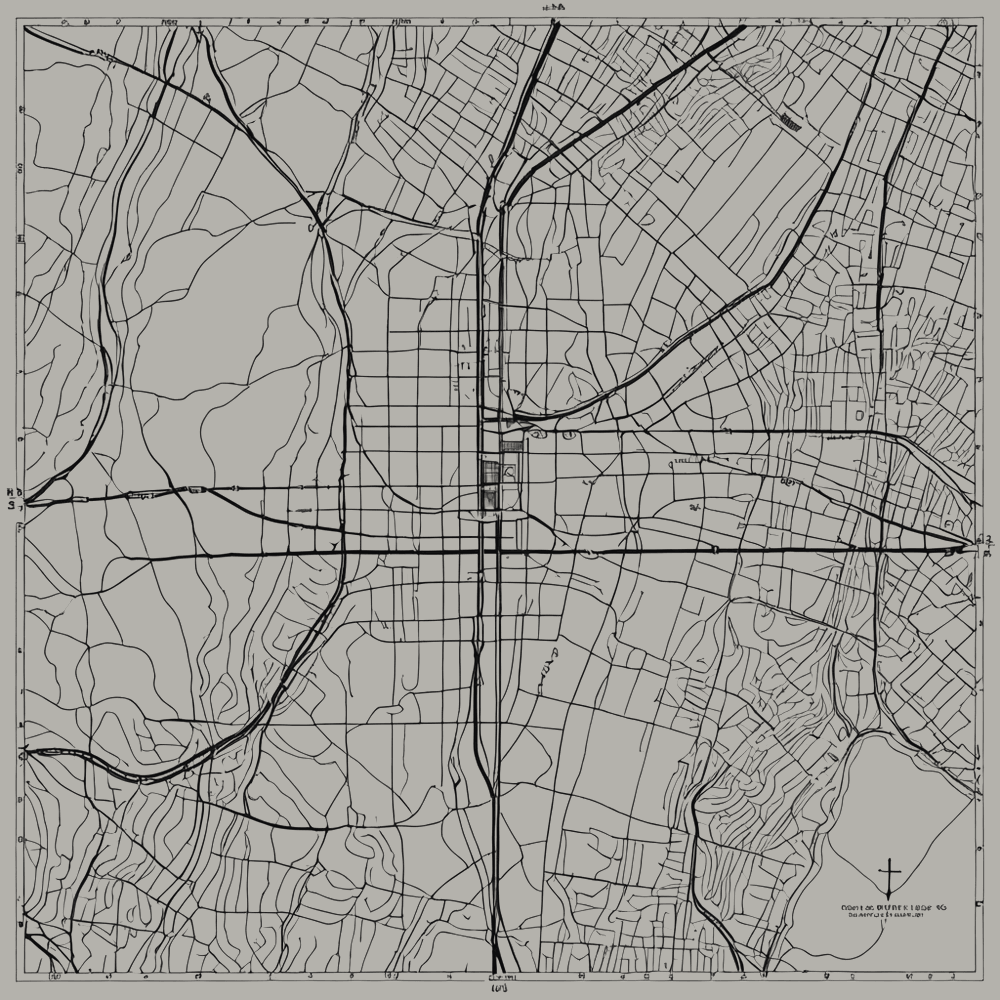

Figure 1.2. The region around the site: settlement, roads, fields and grid, drawn as one network. From this height they are one system. — Figure 1.2 The region around the site: settlement, roads, fields and grid, drawn as one network. From this height they are one system. · drawing ref. NBD-DWG-GRID

1.4 Power supply

The facility is supplied from the regional transmission network at high voltage. Power enters at the substation (Section 5.1), is stepped down, and is distributed to the halls through switchgear and uninterruptible power supplies. At no point is it seen.

The load never falls away. The facility does not sleep, does not have a working day, and does not observe a weekend. Its demand does not follow the demand of the region; it is added to it. The facility buys its supply in the regional market, and where its load moves at all, it moves toward the hours when power is cheapest (Section 4.6).

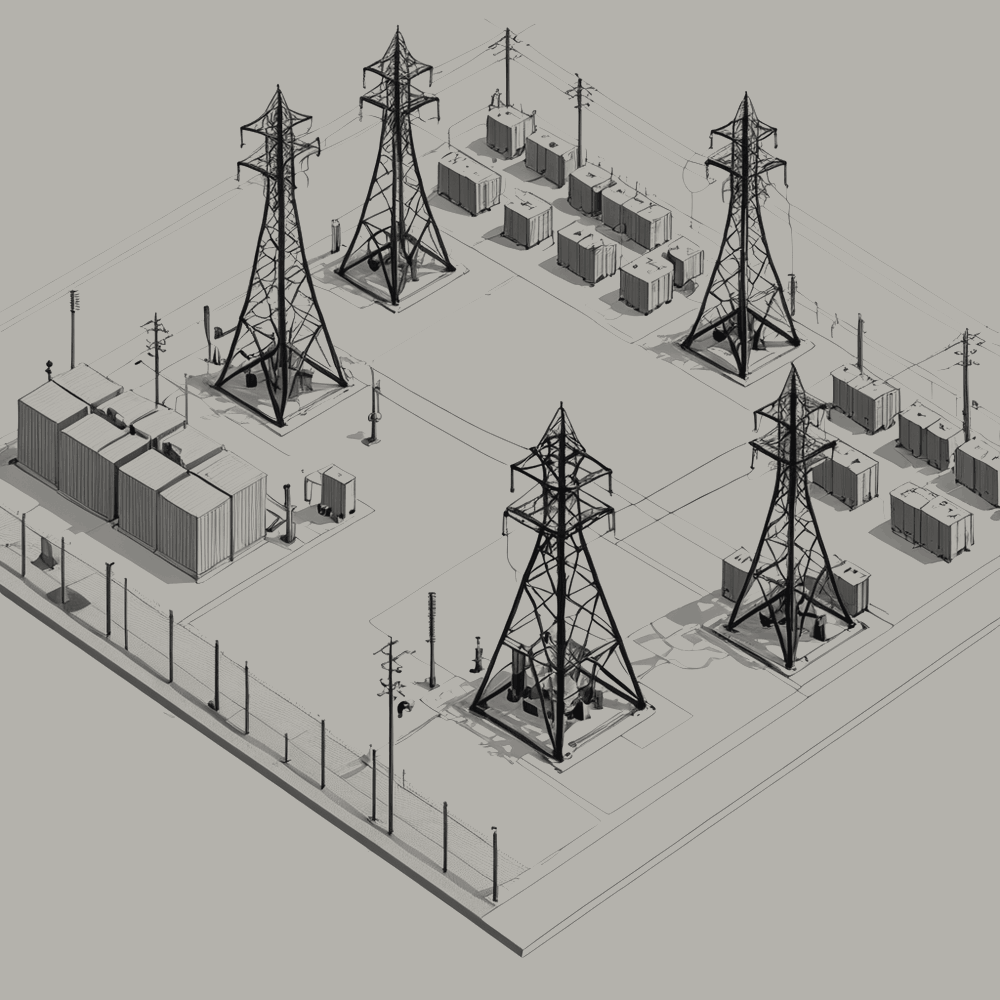

Figure 1.3. The substation yard at the site boundary. Transmission towers carry supply in; the yard steps it down. — Figure 1.3 The substation yard at the site boundary. Transmission towers carry supply in; the yard steps it down. · drawing ref. NBD-DWG-YARD

caution

Equipment in the substation yard is energised at transmission voltage at all times. Do not enter the yard. There is no reason to enter the yard.

1.5 Water

Heat produced in the halls is carried out of the building by water and rejected to the air in the cooling towers. Some of the water leaves as vapour. It is replaced from the site supply.

The cooling towers are the largest structures on the site and the only ones that visibly move: their plumes rise and drift. From a distance they are the most legible sign that the facility is working.

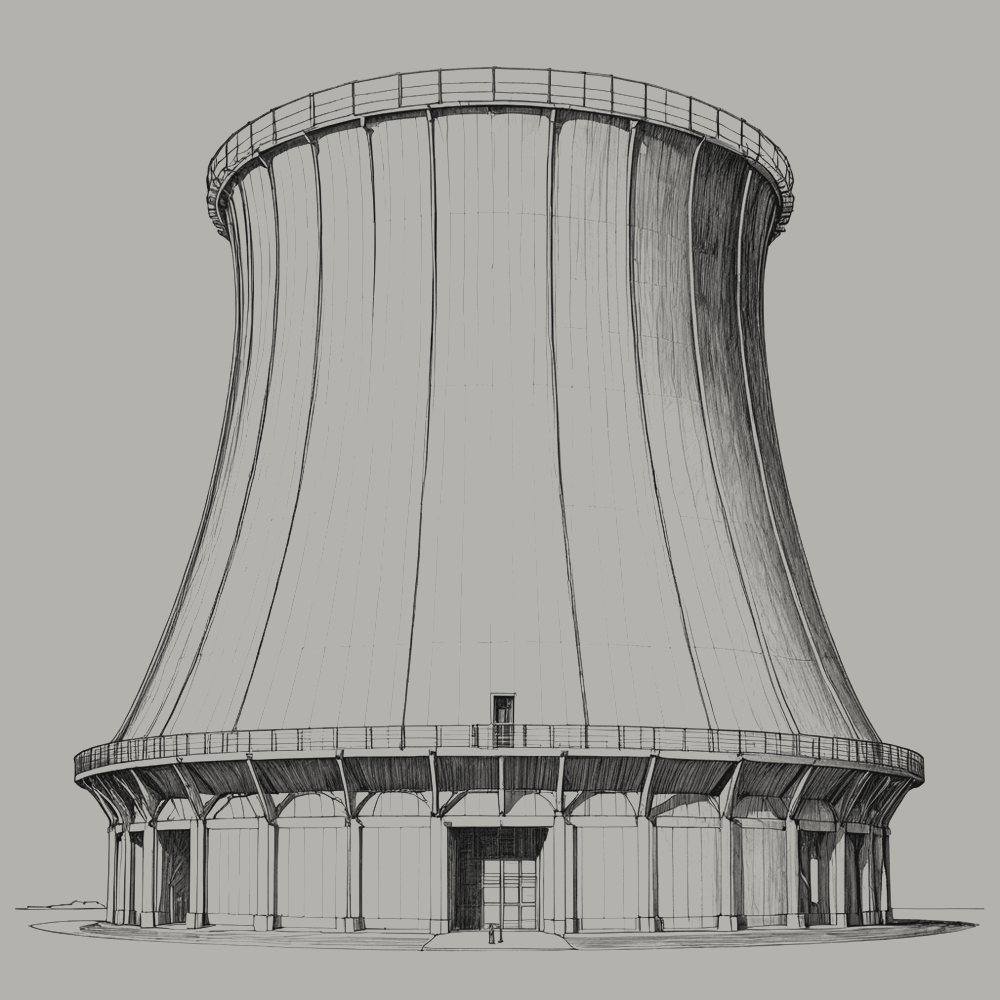

Figure 1.4. Cooling tower, elevation. When it is working, a plume rises from it: the heat of the halls, leaving. — Figure 1.4 Cooling tower, elevation. When it is working, a plume rises from it: the heat of the halls, leaving. · drawing ref. NBD-DWG-TOWERS

Stream	Use	Returned
Make-up water	Replaces evaporation in the towers	As vapour, to the air
Blowdown	Removes concentrated minerals	To treatment
Domestic water	Supplied to amenities	Not used. There is no one to use it.

1.6 On-site generation

A solar field occupies part of the unbuilt land. It supplies a fraction of the facility's demand in daylight and none at night. It is maintained by the same machines that maintain the halls.

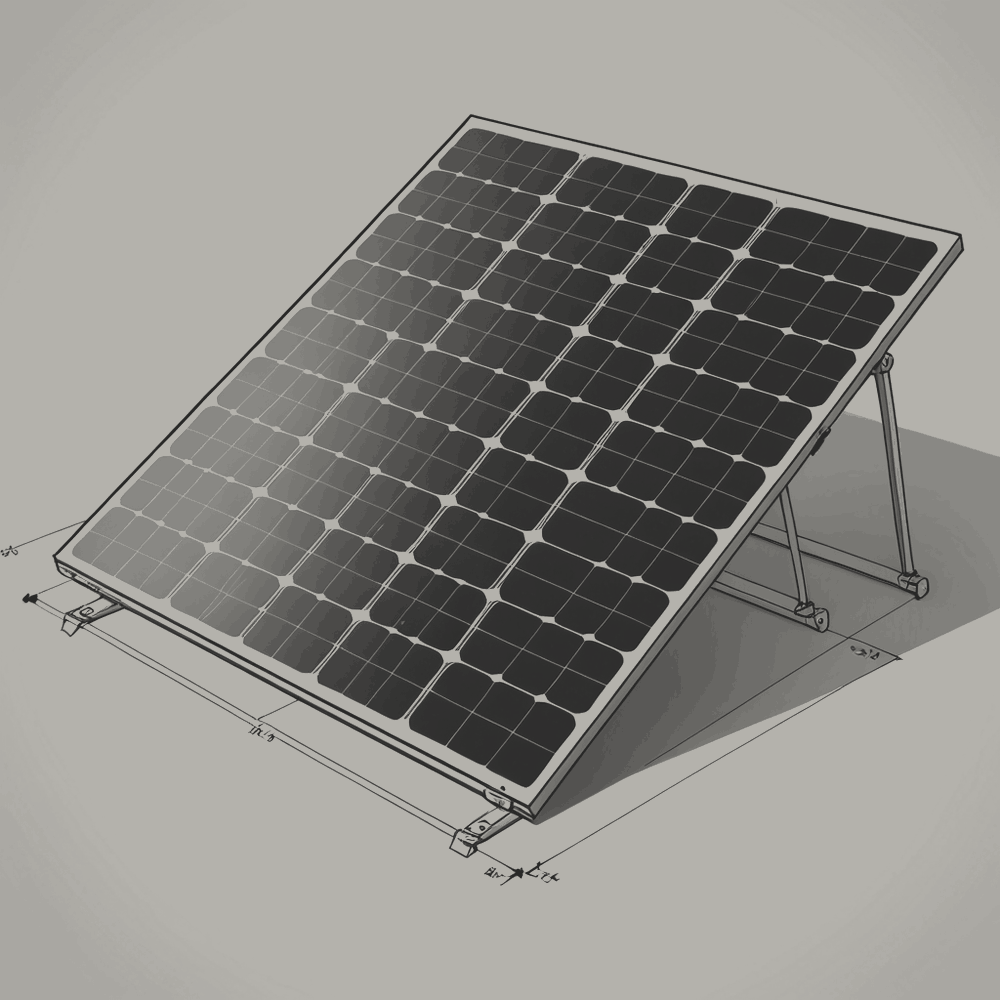

Figure 1.5. One panel of the solar field on its ground mount, tilted to the sun's path. The field repeats it. — Figure 1.5 One panel of the solar field on its ground mount, tilted to the sun's path. The field repeats it. · drawing ref. NBD-DWG-SOLAR

The panels face the sky, which the facility does not otherwise acknowledge. They are the only equipment on the site that stops at night.

1.7 Access

The site has one road. It is maintained for the delivery of equipment, which arrives unaccompanied, and for the removal of equipment at the end of its life (Section 10). The gate opens for vehicles on schedule and for no one otherwise. Contractors engaged by the facility (Section 4.7) arrive on its schedule, as deliveries do.

There is no car park. There is no visitor centre. There is a sign at the gate carrying the facility's designation; it is not addressed to anyone in particular.

performed by	verified by	date	signature

Sign-off fields are provided for regulatory form. No entry is expected.
